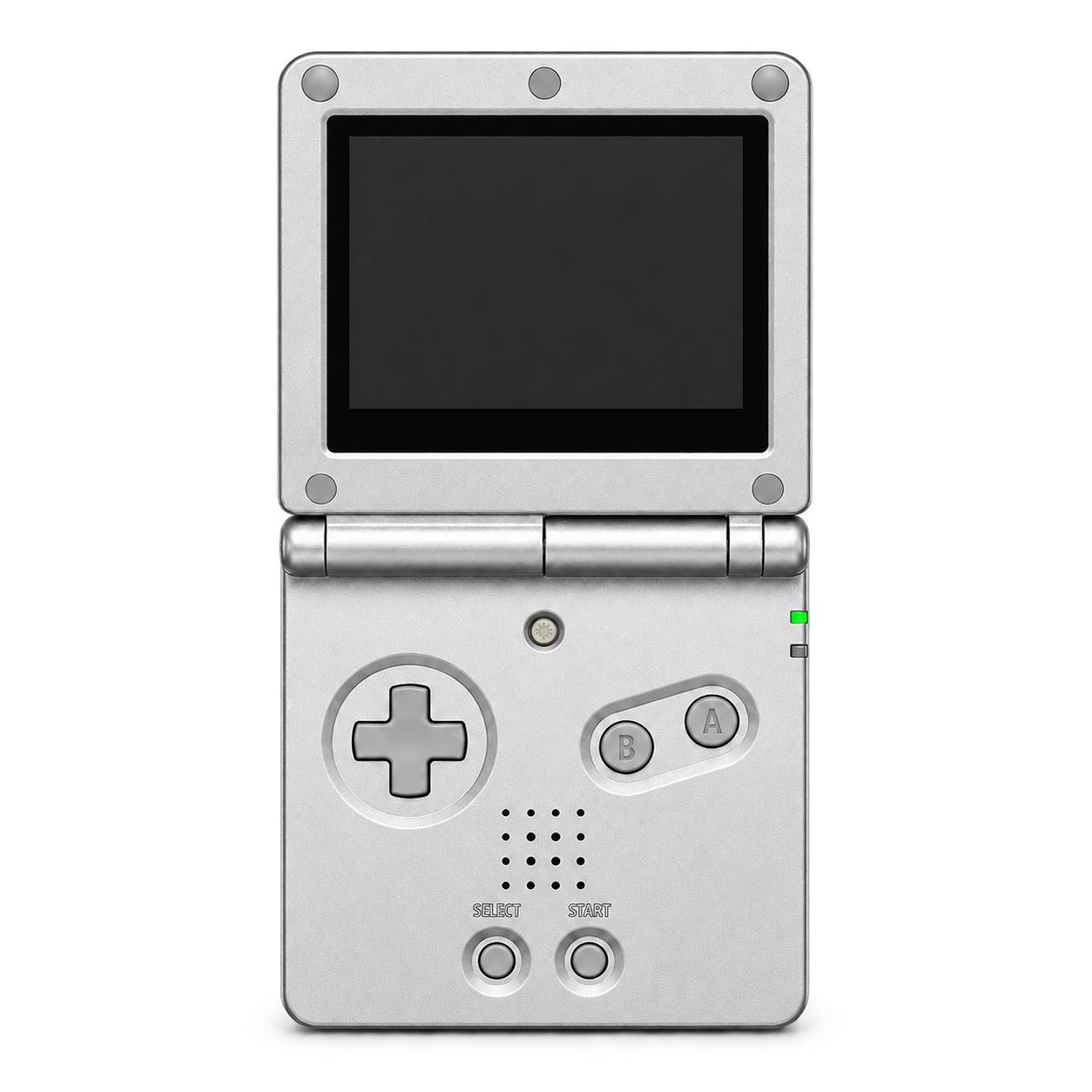

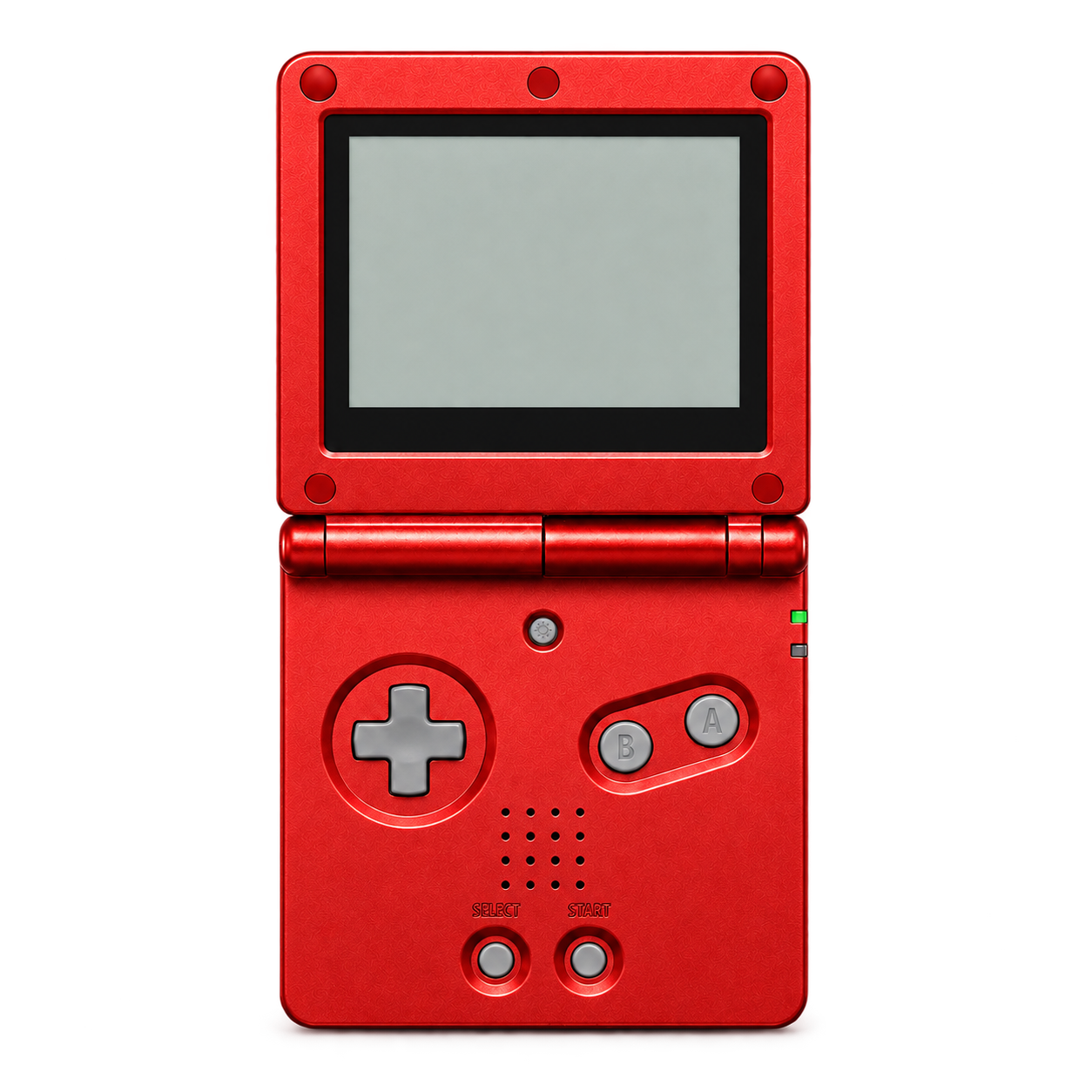

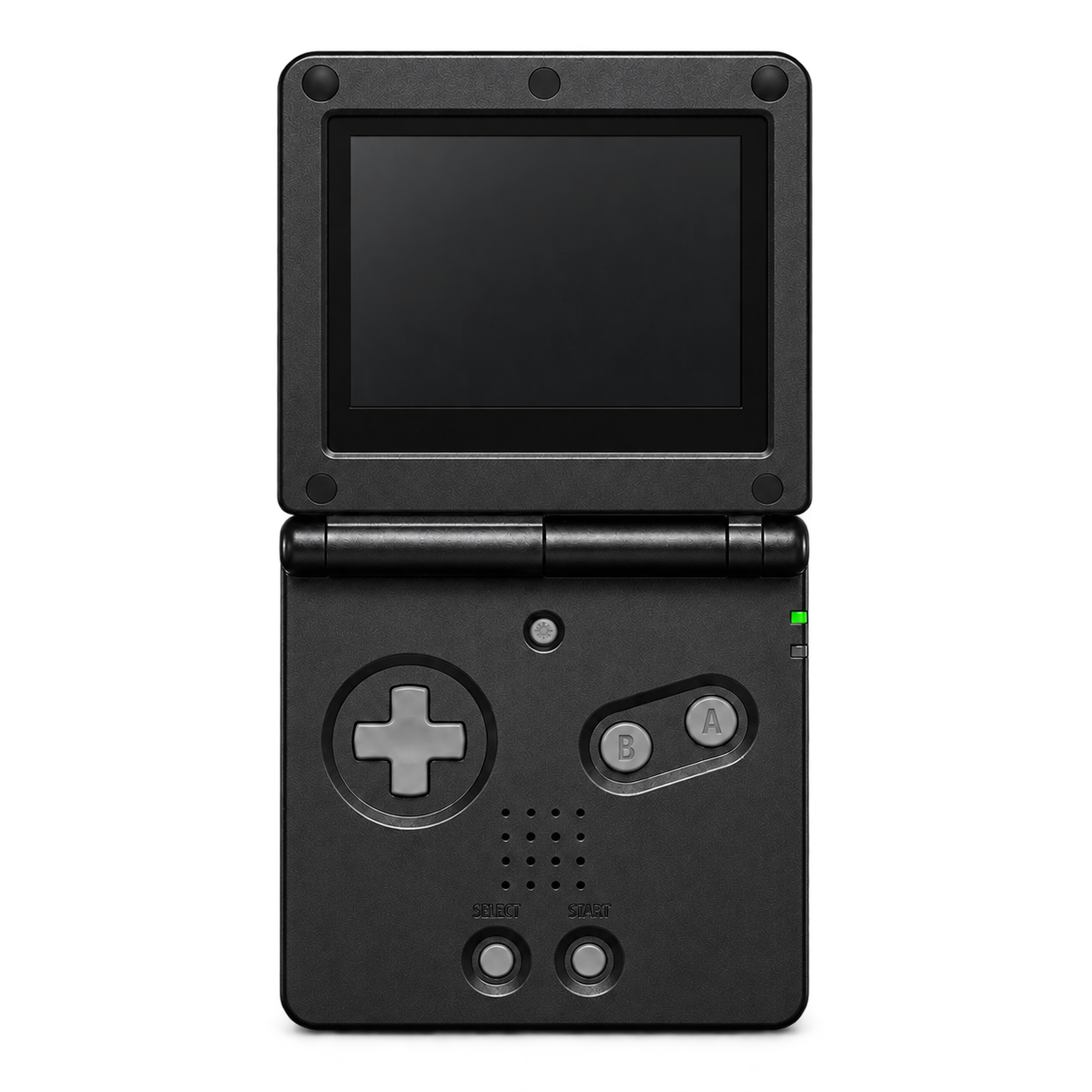

Released in 2003, the Game Boy Advance SP AGS-001 was Nintendo's first clamshell Game Boy Advance. It paired the Game Boy Advance hardware and game library with a compact folding shell, an integrated rechargeable battery and a switchable front-lit display. The AGS-001 is the original SP revision and is identified by the AGS-001 model number on the label underneath the system.
Display
2.9-inch reflective TFT colour LCD
Switchable integrated front light
240 × 160 pixel resolution
32,768 displayable colours
Processor
32-bit CPU with integral memory
Memory
32 KB internal WRAM
256 KB external WRAM
96 KB VRAM
Power
Integrated rechargeable lithium-ion battery
Approximately 18 hours with the screen light off
Approximately 10 hours with the screen light on
Approximately 3 hours charging time
Dimensions
84.6 × 82 × 24.3 mm closed
Weight
Approximately 143 g
Game Media
Game Boy Advance cartridges
Compatible with almost all Game Boy and Game Boy Color cartridges
Audio
Built-in speaker
Stereo audio through a separately sold headphone adapter
Connectivity
Game Boy Advance Game Link Cable port
Compatible with supported Nintendo GameCube link features
Model Number
AGS-001
Release Year
2003
