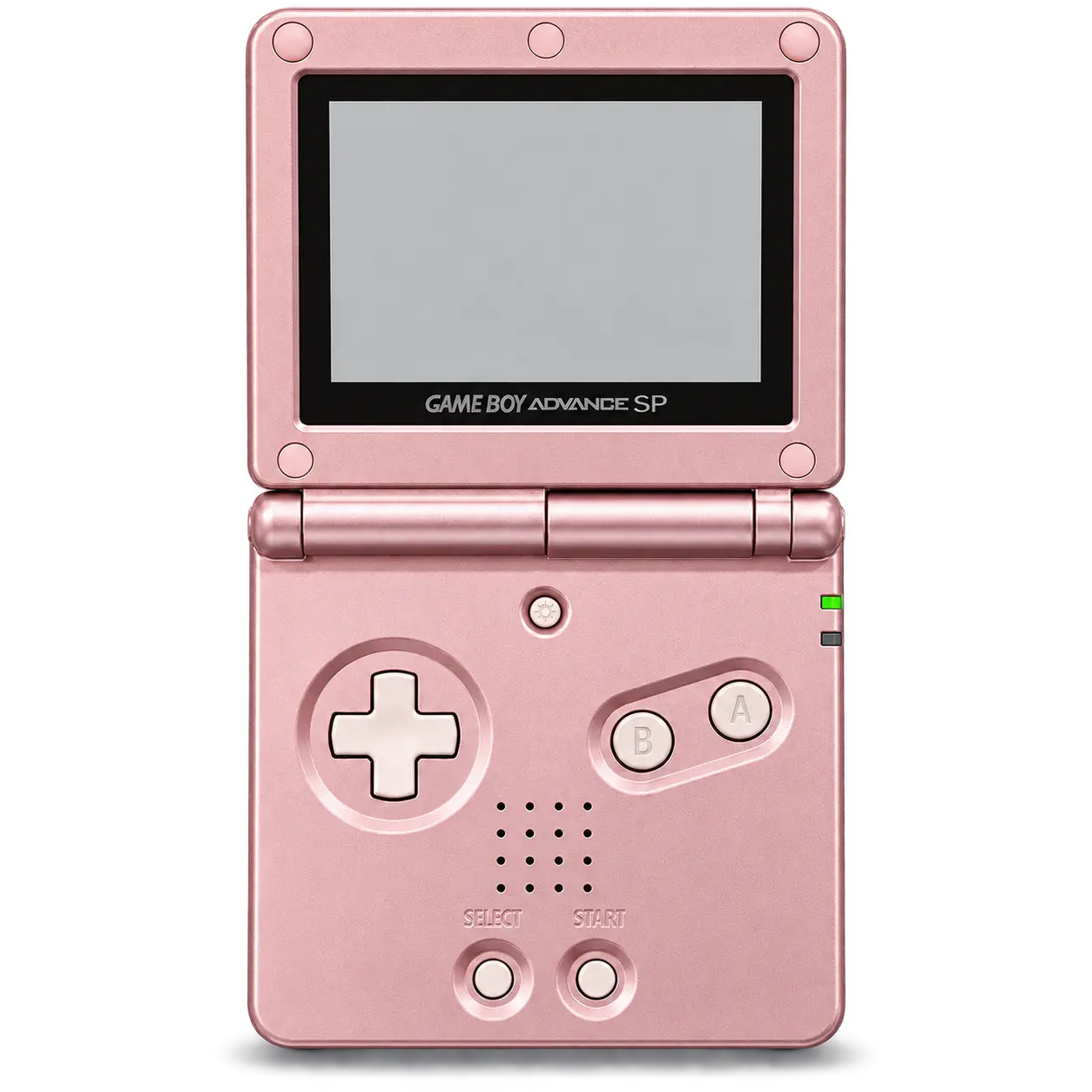

Released in North America in 2005, the Game Boy Advance SP AGS-101 is the later SP revision with a substantially brighter back-lit display. Its light button switches between two brightness levels rather than turning the illumination off. The clamshell design, rechargeable battery and broad Game Boy compatibility remain, while the AGS-101 model number on the underside identifies the back-lit revision.
Display
2.9-inch TFT colour LCD
Integrated backlight with two brightness levels
240 × 160 pixel resolution
32,768 displayable colours
Processor
32-bit CPU with integral memory
Memory
32 KB internal WRAM
256 KB external WRAM
96 KB VRAM
Power
Integrated rechargeable lithium-ion battery
Rechargeable with the Game Boy Advance SP AC adapter
Dimensions
84.6 × 82 × 24.3 mm closed
Weight
Approximately 143 g
Game Media
Game Boy Advance cartridges
Compatible with almost all Game Boy and Game Boy Color cartridges
Audio
Built-in speaker
Stereo audio through a separately sold headphone adapter
Connectivity
Game Boy Advance Game Link Cable port
Compatible with supported Nintendo GameCube link features
Model Number
AGS-101
Release Year
2005
